Diesel Engine Driven End Suction Bare Shaft Fire Pump Manufacturer
PSD Series ( PS+ PD)
TECHNICAL DESCRIPTION

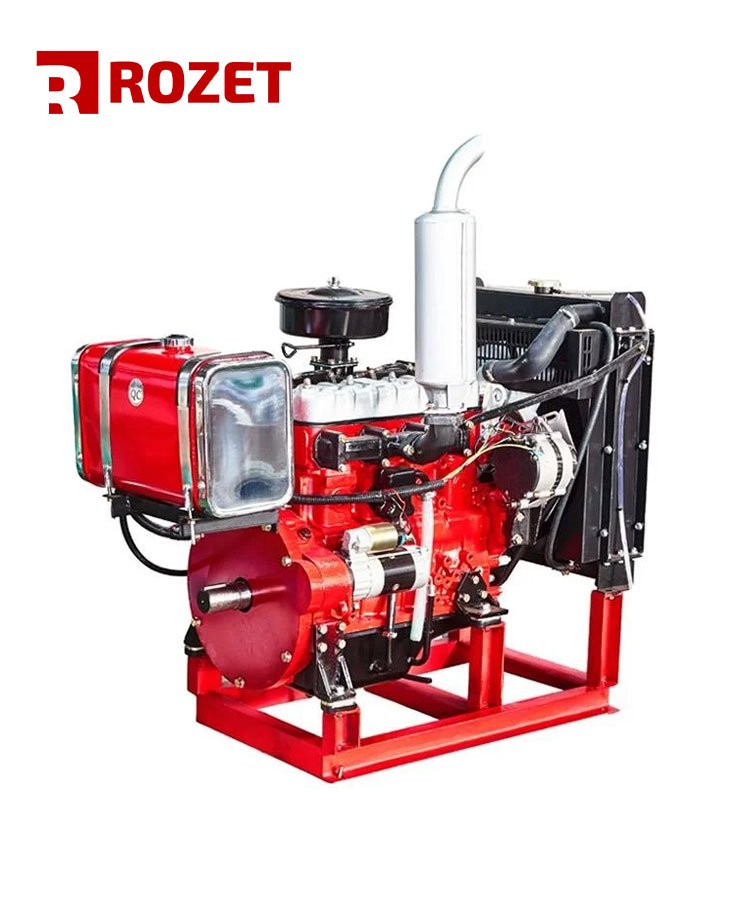

- New generation of centrifugal fire pump coupled with diesel engine.
- More Environmentally Friendly with Emission Standard, Low Fuel, Consumption, Strong Power, Easy to Assemble.

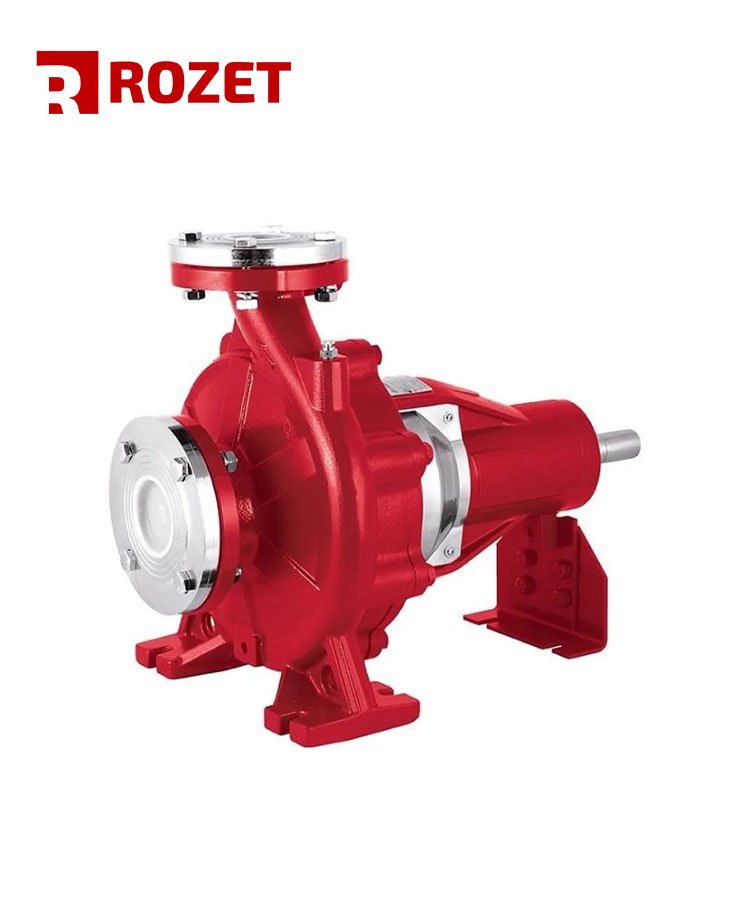

- Cast Iron Pump PS case with anti-corrosive coating, flow rang up to 5500 GPM, Impeller in stainless steel AISI 304 or cast iron & brass.
- Shaft in stainless steel AISI 304 or galvanized iron, Galvanized counter flange with bolts, nuts and gaskets.
Quality NSK bearing, wear resistance mechanical seal.
APPLICATIONS
- Centrifugal pumps are recommended for use in firefighting sets, water supply, cleaning sets, pressure boosting, irrigation, industrial applications, water circulation in acclimatization sets and agricultural application.
- Suitable for all clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.
USING LIMITS
Liquid temperature between -10℃ and +120℃
Ambient temperature up to +50℃
Max. Working pressure 16 bar
With Flow range 1268 m3/hr.
