Electric Driven End Suction Bare Shaft Fire Pump Manufacturer
PSM Series
TECHNICAL DESCRIPTION
- New generation of centrifugal fire pump coupled with electric motor.
- High efficient electric motor Both square motor & round motor available, with protection IP55 class F
- Cast Iron Pump PS case with anti-corrosive coating, flow rang up to 5500 GPM, Impeller in stainless steel AISI 304 or cast iron & brass.
- Shaft in stainless steel AISI 304 or galvanized iron, Galvanized counter flange with bolts, nuts and gaskets.
Quality NSK bearing, wear resistance mechanical seal.
APPLICATIONS
- Centrifugal pumps are recommended for use in firefighting sets, water supply, cleaning sets, pressure boosting, irrigation, industrial applications, water circulation in acclimatization sets and agricultural application.
USING LIMITS
- Liquid temperature between -10℃ and +120℃
- Ambient temperature up to +50℃
- Max. Working pressure 16 bar
- With Flow range 1268 m3/hr.

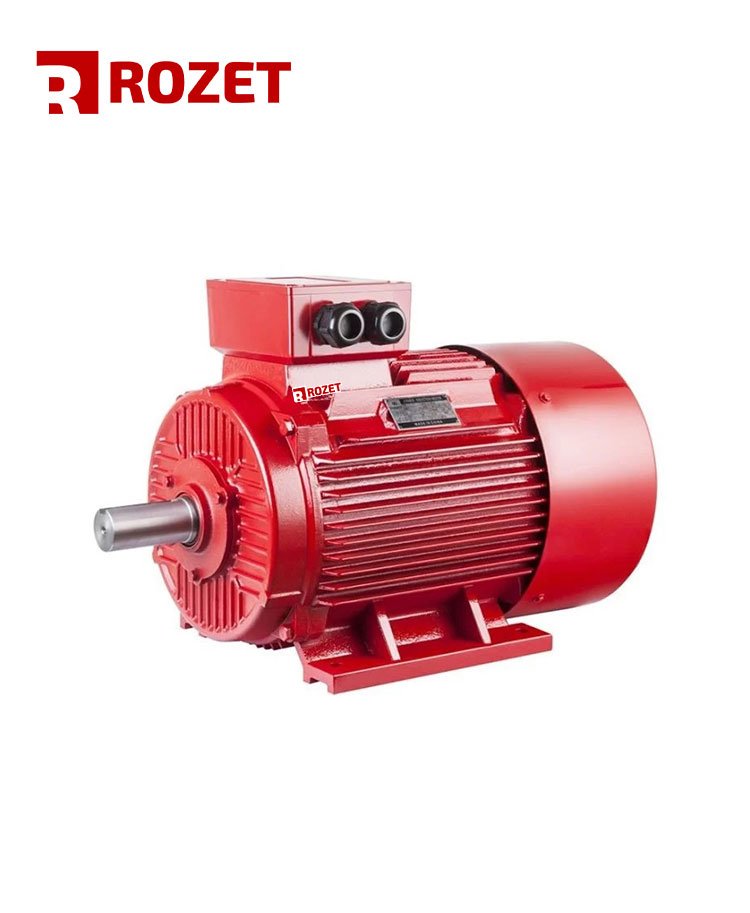

High Efficiency 3 Phase Ac Electric Motor (YE3 50HZ)
Technical Description
- Reliable used for firefighting system etc. Design according to IEC60034 standard.
- TOTAL ENCLOSED FAN COOLING TYPE motor
Common installation has 4 styles, B3,B5,B35,V14
Continuous duty S1 - Ambient temperature up to +50 ℃
Cooling type : IC41
