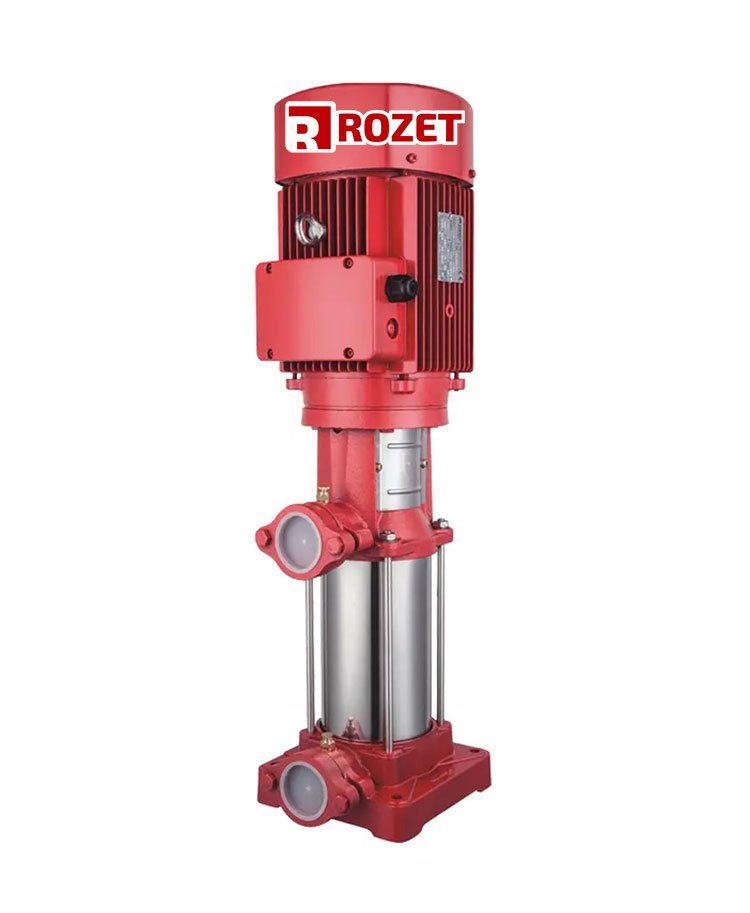

Vertical Multistage Jockey Pump Fire Jockey Pump [PV 50Hz]
TECHNICAL DESCRIPTION
- New vertical multistage centrifugal pump
Both square motor & round motor available
With high efficient motor, with protection IP55 class F - Pump case with anti-corrosive coating
Impeller in techno-polymer or stainless steel - Shaft in stainless steel AISI 304 or galvanized iron
Suction and discharge port in cast iron G20 thread
Quality NSK bearing, wear resistance mechanical seal
APPLICATIONS
- Suitable for use with clean water and liquids that are not chemically
aggressive towards the materials from which the pump is made. - Suitable for use with clean water and liquids that are not chemically
aggressive towards the materials from which the pump is made.
USING LIMITS
Liquid temperature between -10℃ and +120℃
Ambient temperature up to +50℃
Max. Working pressure 25 bar Continuous serice S1
