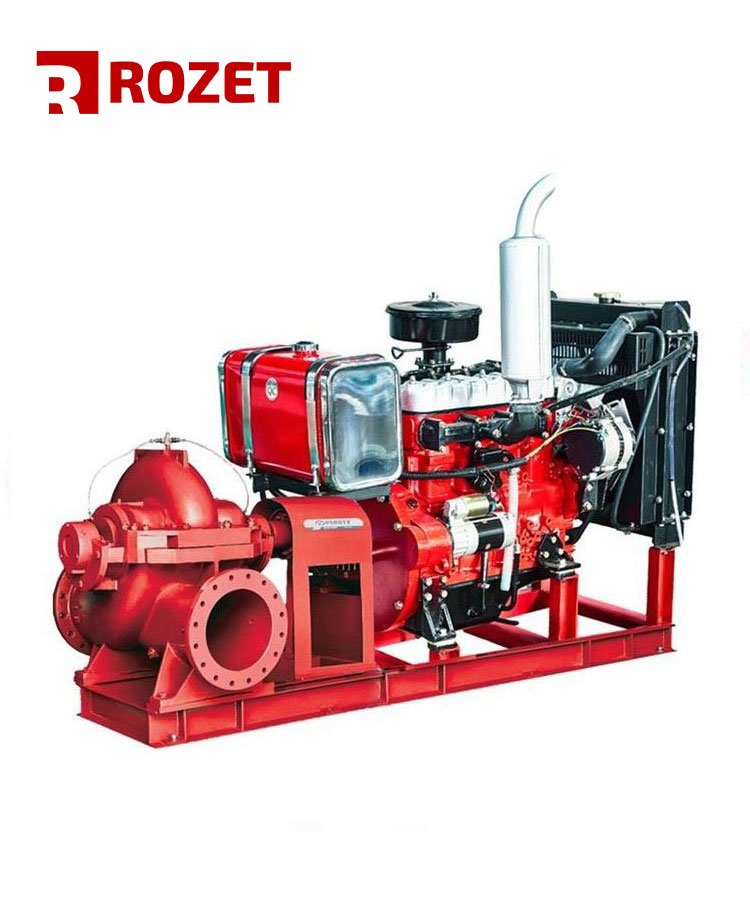

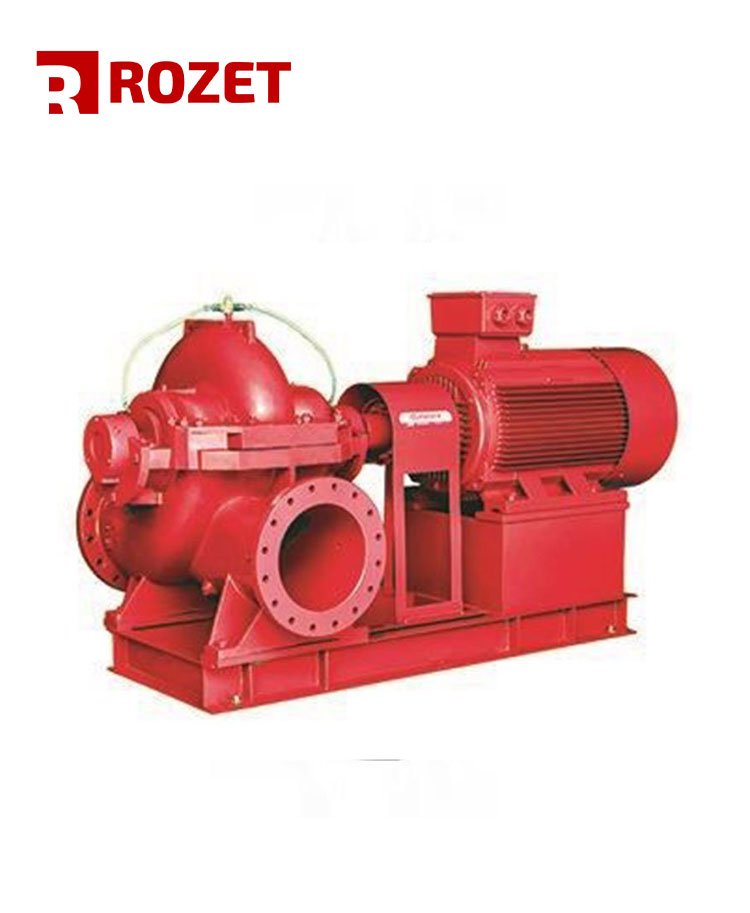

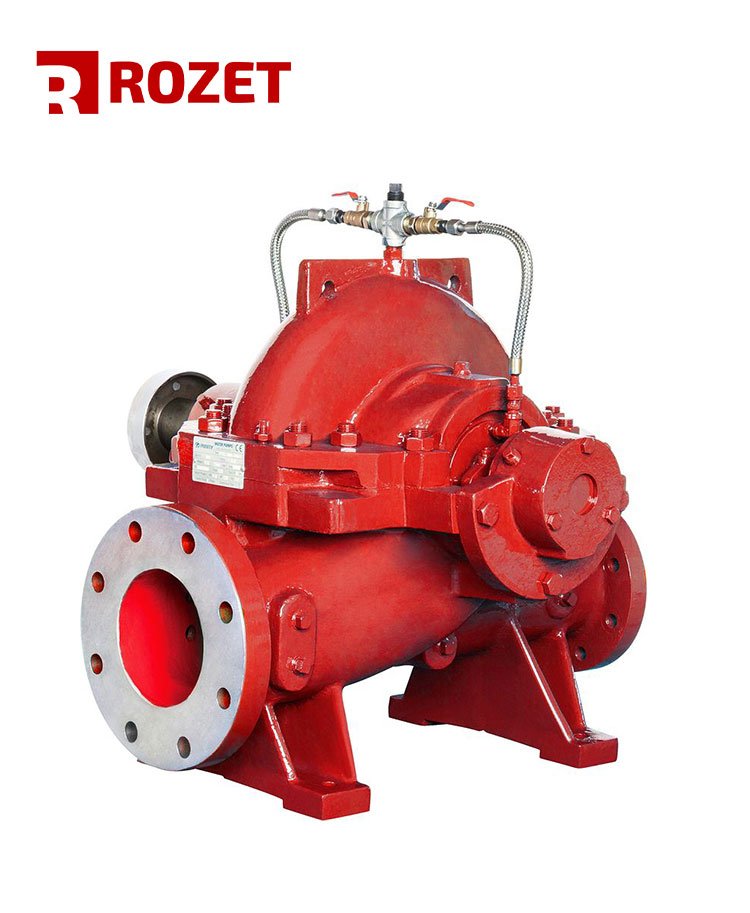

Double Suction Horizontal Split Case Single Stage Pump
PSC Series
TECHNICAL DESCRIPTION
- Horizontal, single-stage, double volute, axially split case centrifugal firefighting pump, which is dedicated to large capacities, highest efficiencies and reliability.
- Symmetry ensures minimal shaft deviation hence best stability
at high torques and speeds. - Internal inspection and maintenance
are facilitated by the pump bearings and mechanical seals
can be serviced without disturbing the piping connections
or electrical motor connections. Its base plates are
fabricated steel with a drip pan. - Maintenance is facilitated by the 2 shell casings, without the need to disassemble the motor and coupling. The casing can be split vertically or horizontally, relative to the impeller, giving you either a vertical split case or a horizontal split case pump. Some manufacturers also offer custom configurations to optimize the pump for specific applications Suction and discharge flanges are on a common centerline for easy installation. Impellers are dynamically balanced to reduce vibration and potential wear.
- Axially split volute pump casing design
Pump case with anti-corrosive coating HT250
Double-entry radial impeller in AISI 304 or HT250
Shaft protecting sleeves in the seal area
Mechanical seal and gland packing are both available
Grease-packed rolling element bearings sealed for life
APPLICATIONS
- Suitable for use with clean water and liquids that are not chemically
aggressive towards the materials from which the pump is made. - The centrifugal pumps are recommended for use in water supply,
cleaning sets, pressure boosting, firefighting sets, irrigation, industrial
applications, water circulation in acclimatization sets, agricultural.
FEATURES AND USING LIMITS
– Liquid temperature between -10℃ and +120℃
– Ambient temperature up to +50℃
– Max. working pressure 25 bar
– Power Range 1.8- 1780Kw
– Flow Capacity Range 0-4500 m3/h
– DN Range of Suction Pipe 125-700 mm (5″-28″)
– DN Range of Discharging Pipe 80-600 mm (3″-24″)
